MPO MTP Fiber Trunk Cable 24 fiber G657A1 OM4 aqua
Features:
● Connector: MPO/MTP to MPO/MTP, female/male
● Polishing: UPC/APC
● Fiber Count: 24 fiber
● Fiber Type: G652D/G657A1/G657A2/OM3/OM4/OM5
● Cable Diameter: 3.0mm/4.5mm/custermized
● Cable Jacket: LSZH, OFNP(plenum), OFNR(PVC)
● Jacket Color: yellow/aqua/violet/customized
● Insert Loss: SM(MPO)≤0.6dB, SM(MTP)≤0.35dB, MM(MPO)≤0.7dB, MM(MTP)≤0.35dB
● Return Loss: SM(MPO)≥50dB, SM(MTP)≥50dB, MM(MPO)≥25dB, MM(MTP)≥30dB
● Polarity: Type A/B/C
● Operating temperature: -40ºC~+80ºC
Description:
The single-mode and multimode MTP/MPO products are multi fiber connectors used in high-density backplane applications in data and telecommunications system, which can extends the link from the regional distribution to the equipment area. The MTP/MPO connector can combine multiple branch fibers into a cable to reduce the installation time, providing significant space and cost savings. MTP/MPO patch cord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combination of 4,8,12,16 or 24 fibers.
The MPO connector brands include MTP®, SENKO, Nissin etc.
Application:
● Data center
● Fiber Access Network
● Data Processing Center
● Data Communication Application
● Data Center Infrastructure
● Storage Area Network
● 10G/40G/100G Ethernet Standard Access
● Pre-termination connectivity between stations
SHKE Communication Tech Co., Ltd. (SHKE) is an industry leader in providing fiber optic products, engineering expertise and integrated services to the telecommunications industry since 2003. We manufacture, engineer and install the fiber optic products and equipment that communications providers need to provide high-speed voice, video and data services to their customers3.
Our extensive experience in both design and application crosses all markets, from Telco, Broadband and Wireless, to Electric Utility, OEM, Enterprise and Private Networks. The products we manufactured included: Fiber Optical Patch Cord, Optical Cable, Fiber Connector, Adapter, Attenuator and Plastic Optical Fiber (POF).The products we designed included: Fiber Optical Patch Panel, Optical Distribution Frame and Fiber enclosure. SHKE is recognized for its commitment to quality, service and dependability, and is known to provide the shortest lead time and quickest turnaround in the industry, earning itself the reputation of being the number one supplier for JIT (Just In Time) delivery.
Product Tags:
|
|

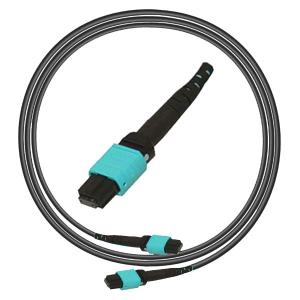

MPO MTP G657A1 OM4 24 Fiber Trunk Cable For Data Center Images
|
